Features:1) Typical uses: equipment protection, for low flow applications in pumps, gas waterheaters, gas boilers, heating elements, solar systems, pool cleaners, Ozonegenerators, Ultraviolet disinfection systems.2) Fluid: water, clean and filtered3) Pipe nominal dimension: DN 15 mm4) Pipe fittings: 1/2" BSP male (G1/2B, NFE 03-005)5) Water pressure drop: lower than 0.7 bar (10PSI) at 15 liters/min (4GPM)6) Line maximum operational pressure: 10 bars (1MPa, 140PSI)7) Line test pressure: 20 bars (2 Mpa, 280 PSI), 20 minutes at 15 C8) Line minimum pressure: 0.1 bar (1.5PSI)9) Water temperature: 10 to 80 C10) Installation position: vertical, +/-5 , water outlet upside11) Electrical rating: 12 Va, max. 0.5A12) Set point adjustment: faxtory setting only13) Set point limits: (flow rate to activate contact) 115 to 200 L/h (1.9 to 3.4 l/min or0.5 to 0.89 USgal/mn)14) Differential: 0.5+/-0.3 liter/min
Product Name: In Line Flow Switch for Boilers and HeatersModel Number: R35Place of Origin: ChinaFeatures:1) Typical uses: equipment protection, for low flow applications in pumps, gas waterheaters, ga

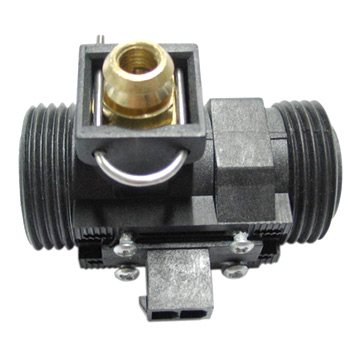

Product Name: In Line Flow Switch with Overpressure ValveModel Number: R36Place of Origin: ChinaFeatures:1) Fluid: water, clean and filtered2) Pipe nominal dimension: DN 20mm (vertical position only)3
Product Name: Paddle Flow SwitchModel Number: R1F2Place of Origin: ChinaFeatures:1) Fluid: water, without magnetic particulars2) Pipe nominal dimension: 3/4" to 4"3) Line maximum operational pressure:
Features:1) With 2 basic configurations, with 1/2" NPT thread (open on flow rise contact or closeon flow rise contact)2) Rating is 10Va for low voltage application only3) Product is developed to be us
Product Name: Paddle Flow Switch for SpasModel Number: R1F8Place of Origin: ChinaFeatures:1) With 2 basic configurations, with 1/2" NPT thread (open on flow rise contact or closeon flow rise contact)2
Features:1) Calibration:a) Positive pressure: +50 to +1,500 mbars (0.8PSI to 20PSI)b) Vacuum pressure: -50 to -200 millibars (-1PSI to -3PSI)2) Differential: 30 to 150 mbars depending on switch used3)
Features:1) Applications: vacuum cleaners, flow control, dust filter controls, and level control2) Rating: be used in low voltage and low rating applications3) Slow make and break contact4) Silver pla

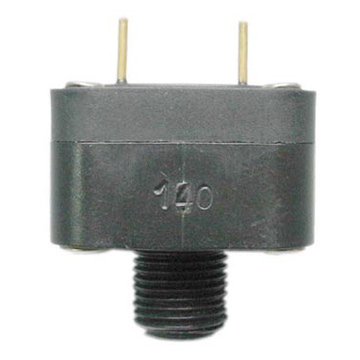

Product Name: Printed Circuit Pressure SwitchModel Number: ZF/ZGPlace of Origin: ChinaFeatures:1) Rating: to be used in low voltage and low rating applications2) Slow make and break contact3) Silver p
