Connection Modules (Подключение модулей)

Zoom in

Producer information

Company:
Zhejiang Junquan Automation General Factory

Address:
Haiyushatou,Wengyang Town, Yueqing, Zhejiang, China (Mainland) Zip: 325606

Phone:
+86-577-62901999

Connection Modules

Features:1) The modules are compatible with KRONE LSA-PLUS modules.2) The design of contacts basing on the principle of airtight contacting makes acompletely reliable connection between the contacts and wires3) Material of plastic parts: PBT-V0 UL94 or ABS-fair-resistant4) Material of contacts pin: silver-plated bronze5) Internal diameter of connection wire: 0.4 - 0.7mm6) External diameter of connection wire (shield): 0.7 - 1.4mm7) Insulation resistance: R>100,000,000MΩ8) Typical contact resistance of wire connection: approx. R9) Voltage intensity: 1000V/min without breakdown and arcover10) Pulse voltage strength 1.2/50 5kV11) Permitted surge current 8/20 5kA12) Common capacitance between neighboring wires: 5pF at 100Hz13) Cross-talk attenuation (150 impedance):a) 300Hz - 3,400Hz 110dBb) 3.4kHz - 10kHz 102dBc) 10kHz - 1.2MHz 63dB14) Insertion loss 0.05dB15) Operating temperature: -25 ~ +80°C16) Storage temperature: -40 ~ +90°C17) Mechanical characteristics:a) No. of insertions of connection wires 200 xb) Force to pull off not less than 35N with single wire along vertical directionof dent

Add to Basket

Web address

Other goods of this manufacturer :

Connection Modules
	Features:1) The modules are compatible with KRONE LSA-PLUS modules.2) The design of contacts basing on the principle of airtight contacting makes acompletely reliable connection between the contacts a

Digital Cutting Machine
	Features:1) Power supply: AC 220V2) Max. cutting width: 100mm3) Cutting length: 0.1mm - 99,999mm4) Speed: L=100mm,100pcs/min5) Dimensions: 350 x 250 x 320mm6) Weight: 25kg

Digital Cutting Machine
	Features:1) Power supply: AC 220V2) Max. cutting width: 100mm3) Cutting length: 0.1mm - 99,999mm4) Speed: L=100mm,100pcs/min5) Dimensions: 350 x 250 x 320mm6) Weight: 25kg

Dil-Zil Socket
	Dil-zil sockets.

Dil-Zil Socket
	Uinversal typeDil-24-zifDil-28-zifDil-32-zifDil-40-zifDil-48-zifCommon typeDil-14-zifDil-16-zifDil-18-zifDil-20-zifDil-24-zifDil-28-zifDil-32-zifDil-32-zifDil-40-zif

Dil-Zil Socket
	Dil-zil sockets.

Disconnection Modules
	Features:1) The modules are compatible with Krone LSA-Plus modules2) The design of contacts basing on the principle of airtight contacting makesa completely reliable connection between the contacts an

Disconnection Modules
	Features: 1) The modules are compatible with Krone LSA-Plus modules2) The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts

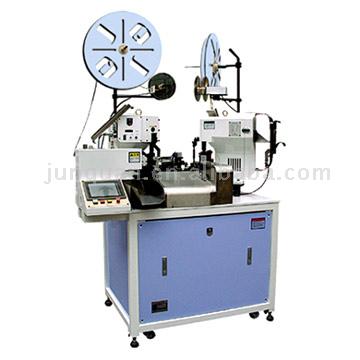

Full Automatic Terminal Crimping Machine (Both Ends)
	Features:1) Dimensions (W x D x H): 1,300 x 870 x 1,450ml2) Weight: 500kg3) Power supply: AC220V4) Power consumption: 2.0kW5) Stripping length: 0.1 - 30mm6) Cutting length: 30 - 99,999mm7) Cutting tol
