750kV Composite Tension / Suspension Insulator (Композитный напряжение 750 кВ / подвески изоляторов)

Zoom in

Producer information

Company:
Dongguan Gaoneng Industrial Co., Ltd.

Address:
Shagang Industrial Road, Shangqiao, Dongcheng, Dongguan, Guangdong, China (Mainland) Zip: 523111

Phone:
+86-769-22291876

750kV Composite Tension / Suspension Insulator

Product Name: 750kV Composite Tension / Suspension InsulatorModel Number: FXBW-750/400Place of Origin: ChinaFeatures:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV siliconerubber, eliminating conventional and traditional seal defectsMaterials: 1) Silicon Rubber for sheds/ housing 2) Glass-fiber reinforced epoxy resin rod (ECR type) for core3) Hop dip galvanized cast steel for metal fittings Electromechanical specifications:1) Rated voltage: 750kV2) Specified mechanical load (tensile): 400kN 3) Arcing distance 6000mm4) Creepage distance: ≥22000 mm5) Secton length: 6550mm6) Lightning impulse withstand voltage (Peak value): ≥2700kV7) Wet 1 min power-frequency withstand voltage (Effective value): ≥1125 kV8) Wet switching impulse withstand voltage 1800kV9) Routine test load: 200kN10) Approximate net weight: 62kg

Add to Basket

Web address

Other goods of this manufacturer :

Disconnector
	Product Name: DisconnectorModel Number: FGW9-12G/630Place of Origin: ChinaThe insulators of products are manufactured by means of injection whole-molding technologyElectromechanical specifications:1)

Composite Insulator
	10kv-1000kv composite insulator for AC transmission lines500kv& 800kv for DC transmission lines

Composite Tension / Suspension Insulator
	We can supply all kinds of composite tension / suspension insulators.

Composite Tension / Suspension Insulator
	We can supply all kinds of composite tension / suspension insulators.

10kV Composite Tension / Suspension Insulator
	Features:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV siliconerubber, eliminating conventional and traditional

10kV Composite Tension / Suspension Insulator
	Features:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional

10kV Composite Tension / Suspension Insulator
	Product Name: 10kV Composite Tension / Suspension InsulatorModel Number: FXBW-10/70-CTPlace of Origin: ChinaFeatures:1) Manufactured by means of injection whole-molding technology2) The juncture betwe

10kV Composite Tension / Suspension Insulator
	Product Name: 10kV Composite Tension / Suspension InsulatorModel Number: FXBW-10/70-SBPlace of Origin: ChinaFeatures:1) Manufactured by means of injection whole-molding technology2) The juncture betwe

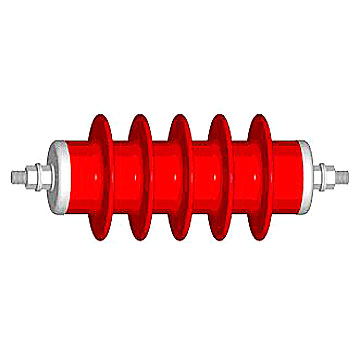

10kV Surge Arrestor
	Product Name: 10kV Surge ArrestorPlace of Origin: ChinaManufactured by means of injection whole-molding technologyMaterials:1) Silicon rubber for sheds/ housing2) Glass-fiber reinforced epoxy resin ro
