25kV Composite Catenary Insulator (25kV Composite Catenary Изолятор)

Zoom in

Producer information

Company:
Dongguan Gaoneng Industrial Co., Ltd.

Address:
Shagang Industrial Road, Shangqiao, Dongcheng, Dongguan, Guangdong, China (Mainland) Zip: 523111

Phone:
+86-769-22291876

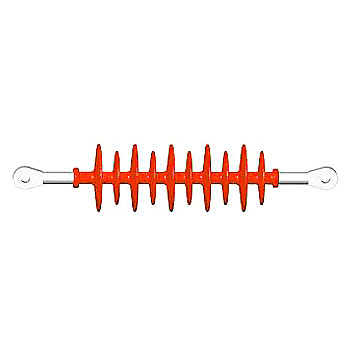

25kV Composite Catenary Insulator

Features:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional seal defectsMaterials:1) Silicon Rubber for sheds/ housing2) Glass-fiber reinforced epoxy resin rod (ECR type) for core3) Hop dip galvanized cast steel for metal fittingsElectromechanical specifications:1) Rated voltage: 25kV2) Specified mechanical load (tensile): 100kN3) Arcing distance570mm4) Creepage distance:≥1600 mm5) Section length: 800mm6) Lightning impulse withstand voltage (Peak value):≥310kV7) Wet 1 min power-frequency withstand voltage (Effective value): ≥150kV8) Pollution withstand voltage(Under saline density 0.35mg/cm2): ≥32kV9) Approximate net weight: 2.80kg

Add to Basket

Web address

Other goods of this manufacturer :

25kv Composite Catenary Insulator
	Features:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional

25kv Composite Catenary Insulator
	Product Name: 25kv Composite Catenary InsulatorModel Number: FJW-25/100Place of Origin: ChinaFeatures:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting

25kV Composite Catenary Insulator
	Product Name: 25kV Composite Catenary InsulatorModel Number: FQX -25/100Place of Origin: ChinaFeatures:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting

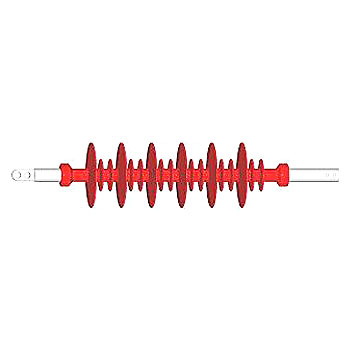

25kV Composite Orientation Insulator
	Features:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional

25kV Composite Orientation Insulator
	Features:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional

25kV Composite Orientation Insulator
	Product Name: 25kV Composite Orientation InsulatorModel Number: FQD-25/100Place of Origin: ChinaFeatures:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitti

330kV Composite Tension / Suspension Insulator
	Features:1) Manufactured by means of injection whole-molding technology2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional

330kV Composite Tension / Suspension Insulator
	Product Name: 330kV Composite Tension / Suspension InsulatorModel Number: FXBW-330/100Place of Origin: ChinaFeatures:1) Manufactured by means of injection whole-molding technology2) The juncture betwe

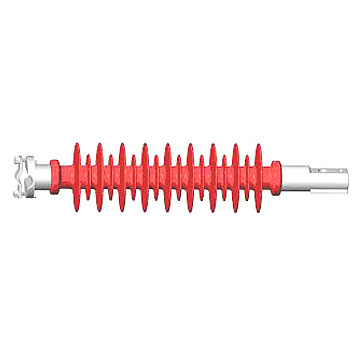

35kV Composite Cross-Arm Insulator
