Zenith Grinding Mill
Product Name: Zenith Grinding MillModel Number: MTM160Place of Origin: ChinaOur machine adopts many patents of mills, such as trapezium working surface, flexibleconnection, and roll linked pressure boost. It has completely overcome traditionalmill`s defect in application, capacity, fineness, energy consumption and service life.It is widely used in building, chemical, chemical fertilizer, metallurgy, mining,nonmetal, abrasive, bearing materials, ceramic, steel, thermal power, brick, tile,and coal industries. It can grind all the materials which are 9 or less on theMohs scale with moisture below 6%, and non-explosive and nonflammable miningmaterials. The final size can be adjusted from 30 to 400 meshes easily. There arethousands of materials our machine can grind. The typical materials are cement(raw meal and cement clinker), quartz, feldspar, calcite, gypsum, limestone, dolomite,graphite, fluorite, aedelforsite, phosphate ore, fused calcium magnesiumphosphate, carbamide, electrolytic manganese metal, ferromanganese, coal, gangue,slag, zirconium, steatite, granite, orthoclase, marble, barytes, ceramics, and glass.This mill has many technical advantages.Firstly, the ladder-shaped rollers and ring improve crushing efficiency greatly.The rollers and ring are designed in inverted trapezium, which reduce the material`sslip velocity between rollers and ring, extend grinding time, and enhance crushingeffect.Secondly, the press spring with balancing pressurized function and the forming resilientconnection with steady and vibration reducing function: Our machine adopts levelprinciple. The symmetrical roller assembly is connected by horizontally placed springrod. When the large material impact one roller assembly, the radial force may pass to another roller assembly which is on the plane of symmetry through spring rod to keep balance. Under this condition, the whole device`s bearing is improved about 40% than others. The forming resilient connection can reduce the vibration and noise, and avoid resonance.Thirdly, the powder classifier adopts high density impeller which can increase powderprecision and capacity. It is a proved fact that under fixed spindle speed, enhancethe density of impeller is to enhance the fineness of final products. In other words, when the fineness of final product is fixed, the spindle speed of high density impeller is lower than the low density one, thus under the same power, the density one reduces resistance to air flow, the capacity is improved more than 50%.Fourthly, there is high-efficiency and energy-saving blower. The efficiency of prismaticblade equipped on the traditional machine is only 62%, but the efficiency of theenergy saving blower whose impeller and blade are both stamping is 85%.Lastly, there is convenient impeller adjusting device. The clearance between housingand end of powder classifier`s blade also effects fineness. Our mill is convenient to adjust the clearance.Features:1) Adopts latest national mill patents2) New design3) Reasonable structure4) Smaller size5) Lower energy consumption6) Longer service life7) Less consumption of wearing parts8) Higher performance cost ratioMain technical parameters:1) Number of roller: 62) Major diameter of roller x height (mm): Φ440 x 2403) Internal diameter of roller X height (mm): Φ1,600 x 2704) Main engine spindle speed (r/min): 825) Maximum feeding grain size (mm):6) Grain size of finished product (mesh): 80 - 4007) Capacity (MT/h): 15-228) Overall dimensions (mm): 12,550 x 5,700 x 8.3559) Weight (MT): 35
Our machine adopts many patents of mills, such as trapezium working surface, flexibleconnection, and roll linked pressure boost. It has completely overcome traditionalmill`s defect in application, cap
The Zenith Roller Mill has a combined function of grinding, classifying, and pneumatic convey and a number of proven successful accomplishments for grinding phosphate rock, limestone, manganese dioxid
The zenith vertical shaft impact crusher features a unique combination ofrotor design, wear material and crushing equipment design. This combinationhas proved revolutionary in improving capacity, gain
The efficient sand washing machine of XSD series, which are developed on the basisof introducing foreign outstanding technology of the same kind of products, isa kind of cleaning equipment of internat
Product Name: Zenith Ultra-Fine MillModel Number: XZM215Place of Origin: ChinaXZM ultrafine mill is high efficiency and low cost ultrafine processing equipmentwhich is designed by our engineers and te

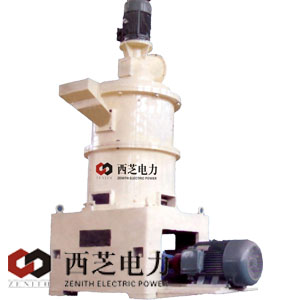

Product Name: Zenith Ultralfine MillModel Number: XZM227Place of Origin: ChinaXZM ultrafine mill is high efficiency and low cost ultrafine processing equipmentwhich is designed by our engineers and te
Product Name: Zenith Ultralfine MillModel Number: XZM221Place of Origin: ChinaXZM ultrafine mill is high efficiency and low cost ultrafine processing equipmentwhich is designed by our engineers and te
XZM ultrafine mill is high efficiency and low cost ultrafine processing equipmentwhich is designed by our engineers and technicians basing on many timesinnovation, test and more than twenty years expe
