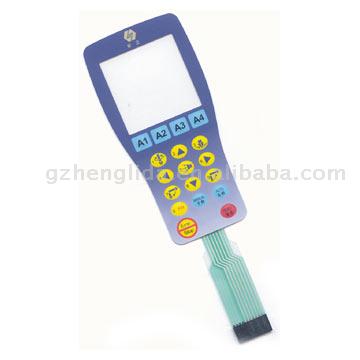

Membrane Keypad Switch


Product Name: Membrane Keypad SwitchModel Number: AHLD-0813Place of Origin: ChinaSpecifications:1) Maximum circuit rating: 35V DC, 100mA, 1W2) Contact resistance: 10 - 500Ω3) Insulation resistance: 100mΩ at 100V DC4) Dielectric withstand: 250V Rms (50 - 60Hz 1min)5) Contact bounce: 5ms or less6) Actuation force:a) Flat type 60 - 300g (2 - 10oz)b) Tactile type: 150 - 400g (6 - 14oz)7) Switch stroke:a) Flat type 0.1 - 0.5mmb) Tactile type: 0.6 - 1.5mm8) Life expectancy:a) Flat type: 5,000,000 closures or moreb) Tactile type: 1,000,000 closures or more9) Surface hardness: 3H or more10) Operating temperature: -40°C ~ +80°C11) Storage temperature: -40°C ~ +85°C12) Humidity: 90% - 95% (40°C) for 240 hoursPacking:Carton
