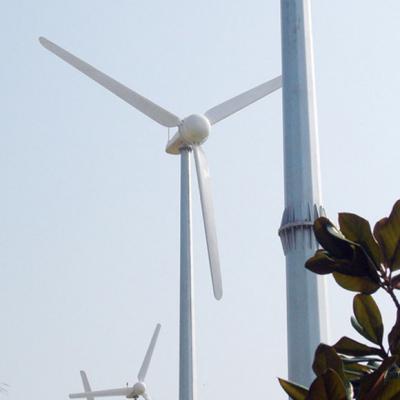

Hummer 3KW Domestic Wind Generator
3KW Domestic Wind Generator Structure
Hummer manufactures and offers advanced 3KW Domestic Wind Generator specifically designed
for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.
Our products are third party certified and during the past 10 years, Hummer 3KW Domestic Wind Generator
have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK,
Italy, France, India, Spain etc. For more information on Hummer 3KW Domestic Wind Generator such as users
manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
Hummer 3KW Domestic Wind Generator curve
H4.6-3KW Domestic Wind Generator specifications
Configuration
3 Blades, Horizontal axis, upwind
Rotor Diameter
4.6m
Rated Power
3KW at 10m/s
Maximum Output Power
4.5KW at 15m/s
Battery Bank Voltage
180 Vdc
System Output Voltage
110/220 Vac
Cut-in Wind Vpeed
2.5 m/s
Working Wind Speed
3-25 m/s
Survival Wind Speed
50 m/s
Generator Efficiency
>0.8
Wind Energy Utilizing Ratio
0.40 Cp
Energy Monitoring & User Control
Siemens PLC controller with touch screen
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight (kg)
71.8 kg
Gearbox
None, Direct drive, front generator design
Blade Material
Fiberglass reinforced composite
Over Speed Regulation
Auto Yawing
Shutting Down Method
Manual & Automatic electromagnetism Braking
How 3KW Domestic Wind Generator works
|
