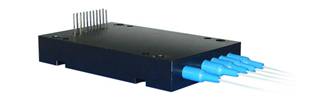

1x4 Optical Switch anfiber.com,Anfiber company supply 1x4 Optical Switch, as a professional optical device manufacturer in the world, high quality and low price 1x4 Optical Switch in Shenzhen,China.Anfiber-1x4 Optical Switch, which is famous for its high performance, compact dimension and simple control type. It is an ideal Component for OADM，OXC，system monitor and protection. With compact dimension, it could be easy to integrate into a high density optical communication system.1x4 Optical Switch Features:•Wide Wavelength Range•Low Crosstalk•High Stability, High Reliability•Epoxy-free on optical path•Latching and Non-latching1x4 Optical Switch Applications:•Switching in Optical•System Monitor•R&D in Laboratory•Configurable OADM1x4 Optical Switch Parameters:Wavelength Range nm 1310 or 1490 or 1550 (SM) 1310 & 1490 & 1550 (SM) 850 or 1310(MM)Insertion Loss (1x4) dB Typ:1.0 Max:1.2 Typ:1.2 Max:1.5 Typ:1.2 Max:1.5Insertion Loss (1x8) dB Typ:1.5 Max:1.8 Typ:1.8 Max:2.0 Typ:1.8 Max:2.0Insertion Loss (1x16) dB Typ:2.0 Max:2.4 Typ:2.4 Max:2.6 Typ:2.4 Max:2.6PDL dB ≤0.05Return Loss dB SM≥50 MM≥30WDL dB ≤0.25Crosstalk dB SM≥55 MM≥35Repeatability dB ≤±0.02Power Supply v 5.0Lifetime times ≥107Switch Time ms ≤8Transmission Power mW ≤500Operating Temperature ℃ -20~+70Storage Temperature ℃ -40~+85Dimension mm 1
1x8 Optical Switch anfiber.com,Anfiber company supply 1x8 Optical Switch, as a professional optical device manufacturer in the world, high quality and low price 1x8 Optical Switch in Shenzhen,China.An
1x8 Optical Switch anfiber.com,Anfiber company supply 1x8 Optical Switch, as a professional optical device manufacturer in the world, high quality and low price 1x8 Optical Switch in Shenzhen,China.An
1x8 Optical Switch anfiber.com,Anfiber company supply 1x8 Optical Switch, as a professional optical device manufacturer in the world, high quality and low price 1x8 Optical Switch in Shenzhen,China.An
4x4 optical switch anfiber.com,Anfiber company supply 4x4 optical switch, as a professional optical device manufacturer , high quality and low price 4x4 optical switch in Shenzhen,Chinaanfiber.com-4x4
ASE L-band light source anfiber.com,Anfiber company supply ASE L-band light source, as a professional optical device manufacturer in Shenzhen,China, high quality and low price ASE L-band light s
MEMS 1x2 2x2 Optical Switchanfiber.com,Anfiber company supply MEMS 1x2 2x2 Optical Switch, as a professional optical device manufacturer in Shenzhen,China, high quality and low price MEMS 1x2 2x2 Opti
Multimode 850nm 1310nm 1550nm light sourceanfiber.com,Anfiber company supply LED Multimode 850nm light source, as a professional optical device manufacturer in Shenzhen,China, high quality and low pri
Rack-mounted 1X32 optical switch anfiber.com,Anfiber company supply Rack-mounted 1X32 optical switch, as a professional optical device manufacturer in the world , high quality and low price Rack-m
1x16 Optical Switch anfiber.com,Anfiber company supply 1x16 Optical Switch, as a professional optical device manufacturer in the world, high quality and low price 1x16 Optical Switch in Shenzhen,China
