10G DWDM XFP Transceiver

English

Russe

Französische |

Hilfe

Zu Favoriten

Dem Warenkorb hinzugefügte Favoriten

Beschreibung der Ware

Kommunikation / Netzwerk / Telefonie-Produkte / Ausrüstung für Radionetzwerke / Zugriffspunkte / Router /

Bild zu vergrössern

Ausführlicher über dienstleistung

Informationen über den produzenten

Firma:
Flyin Optronics Co.,Ltd

Adresse:
14F,Solar Silicon Valley Building,Queshan Road,Longhua,Baoan District

Telefon:
+86-755-28113498

.

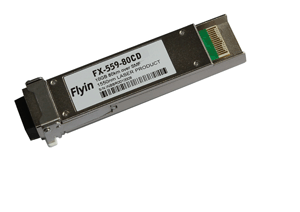

Flyin Optronics’ DWDM XFP Transceivers are Small Form Factor 10Gb/s (XFP) transceivers and compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and leads free per Directive 2002/95/EC. The transceiver consists of two sections: The transmitter section incorporates a DWDM cooled EML laser. And the receiver section consists of a PIN or APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Featuresl Data rate from 9.95Gbps to 11.3Gbpsl Cooled DWDM EML and PIN/APD receiverl No reference clock requiredl XFI and line side loopback Mode Supportedl +3.3V +1.8V power supplyl Diagnostic Performance Monitoring of module temperaturel Compliant with RoHS6 (Lead free)l Temperature range 0°C to 70°C Applicationsl 10G Ethernet, Fiber channell DWDM SONET OC-192&SDH STM-64l DWDM Networks

In den Warenkorb

Internetauftritt des Herstellers

Andere Waren dieses Produzenten :


	Flyin Optronics' SFP+ transceiver is designed to transmit and receive optical data over MMF/SMF. The SFP+ module electrical interface is compliant to SFF-8431. The transmitter section incorporates a D


	Flyin Optronics’ XFP Transceivers are Small Form Factor 10Gb/s (XFP) transceivers and compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet

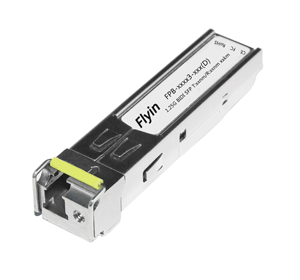

	Flyin Optronics' BIDI SFP transceivers are high performance, cost effective modules supporting data-rate of 155M-2.5Gbps and 300m-120km transmission distance.The transceiver consists of three sections

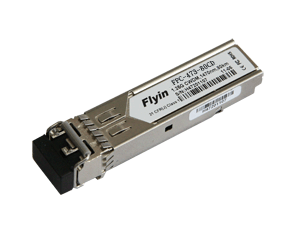

	Flyin Optronics' CWDM SFP transceivers are high performance, cost effective modules supporting data-rate of 155M-2.5Gbps and 20km-120km transmission distance.The transceiver consists of three section


	Flyin Optronics' SFP transceivers are high performance, cost effective modules supporting data-rate of 155M-4.25Gbps and 300m-120km transmission distance.The transceiver consists of three sections: a


	Flyin Optronics' DWDM SFP transceivers exhibits excellent wavelength stability, supporting operation at 100Ghz channel, are high performance, cost effective modules supporting data-rate up to 2.5Gbps
