Construction:They are made of graphite.has good compressibility , elasticity,flexibility,corrosion proof performance and high temperature resistance performance. Application/ Service: They are indicated for applicate medium:acid, alikali, saline solution sea water, steam organic solvent except strong oxidizer like aquarelia,conventrated nitric acid, concentrated sulfuric acid and high temperature chromate, ironchloride Typical physical properties of graphite: ItemUnitValueContent of Graphite%99Tensile Strengthmpa≥4.0Torlerance of Densityg/cm3≤+/-0.07Compressibility%35-55Recovery%≥9Ash%≤1.0Ignition Loss (450℃)%≤1.0Sulphur ContentPpm≤1200Tolerance of Thickness%≤+/- x 7

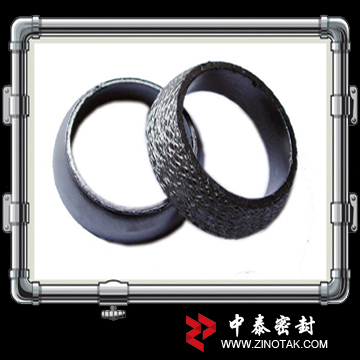

Detailed Product DescriptionGraphite Packing Ring -content of graphite: at least 99% -can be reinforced by 304ss ,nickle wire -content of wire mesh:60% Graphite Packing Ring, Graphite Gasket is
Non-asbestos Gasket is a sealing material made by adding special adhesives and a little packing into it, then roll and sulfurated. It is a replacement of asbestos gasket.Non-asbestos Gasket has better
CONSTRUCTION: ZT-410(Graphite Sheet Jacketet Tanged Metal) is made by materials of three cascades. A laminated graphite is inserted into a convexo-plane metal frame perforated. It is produ
Reinforced Asbestos Free Sheets (1) stainless steel wire-mesh inserted (2) high temperature and high pressure 3) 0% asbestos Reinforced Non-asbestos Sheet The product is made of Non-asbestos She
Description:ZT-600 Spiral-Wound gasket is formed of V-shaped metallic stripe and soft non-metallic filler by means of piled, spiral wound and connected its end and beginning by dot welded. Depend on i
Description: Corrugated Metal Gasket consists of a metal core with concentric grooves on both sides, coated with expanded graphite or PTFE layer. The thickness of metal can be thinner, e.g. 3mm, 2mm,
Description: Double Jacketed Gasket is made from graphite, ceramic, non-asbestos etc. filler covered with thin metal jacket, such as stainless steel, carbon steel, copper etc. By their sealing e
