Self-regulating Heating Cable (src)
We manufacture a variety of special self-regulating heating cables.1. Applications: solar energy water heater`s heat tracing; oil well heat tracing; fire pipeline heat tracing; water pipe preventing frostbite and heat preservation in construction industry; heat-preservation and preventing frost function of long pipeline and tank container; natural gas exploitation and transporting establishment, chemical industry; heat tracing in civil use such as used for producing electrothermal glove, electrothermal mouse, low-voltage electrothermal blanket and electrothermal blanket etc.2. Temperature Range:a. High Temperature Type:Highest maintaining temperature: 135oCHighest surface temperature: 135oC ±5oCHighest tolerated temperature: 155oCOperating voltage: 12V, 24V, 36V, 110V, 220V, 380VOutput power at 10oC: 25W/m, 35 W/m, 45 W/m, 55 W/m, 65 W/m, 75 W/mb. Medium Temperature Type:Highest maintaining temperature: 105oCHighest surface temperature: 105oC±5oCHighest tolerated temperature: 135oCOperating voltage: 12V, 24V, 36V, 110V, 220V, 380VOutput power at 10oC:25W/m, 35 W/m, 40 W/m, 45 W/m, 50 W/m, 60 W/mc. Low Temperature Type:Highest maintaining temperature: 65oCHighest surface temperature: 70oC ±5oCHighest tolerated temperature: 105oCOperating voltage: 12V, 24V, 36V, 110V, 220V, 380VOutput power at 10oC:10W/m, 15 W/m, 20 W/mSpecial power and voltage can be designed as per customer`s request.3.Certifications : CE , CCC, ISO9001, SGS (ROHS)
We manufacture a variety of special underfloor heating cables.1. Applications: heating of concrete ground and floor; snow and ice melting system; floor-draining and drainpipe preventing-frostbite soil
Aluminum Foil Adhesive Tape is coating a special layer of adhesive on Aluminum Foil Tape, used to fix the electrothermal strips and the sensing package of temperature controllers along the direction o
Single-Phase Power-Limiting Heating Cable is mainly used in all sorts of pipelines, instrument preventing frostbite, and heat preservation. The highest standing temperature is 150°C and it can be
The working theory of Three-Phase Power-Limiting Heating Cable is basically the same with that of Single-Phase Power-Limiting Heating Cable. The only difference is single-phase cable adopting single p
THAW/1 is component type cable for outdoors melting snow and ice, which can be used in many kinds of places as roads, yards, stadiums, and football fields. It also can be paved on hot bitumen, concret
1. Applications: in oil well, offshore petroleum platform, natural gas exploitation and transporting establishment, chemical industry, the flammable and detonable site, etc. It is the preferred produc

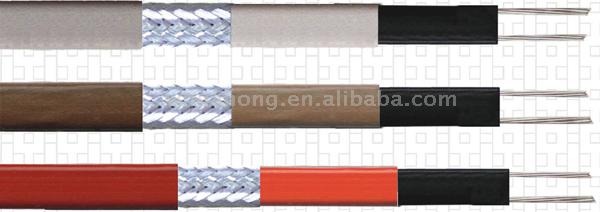

The most outstanding characteristic of Comprehensive Flame-Retardant Temperature Self-Regulating Heating Cable is that the PTC core strip material is composed by Flame-Retardant half-electrical plasti

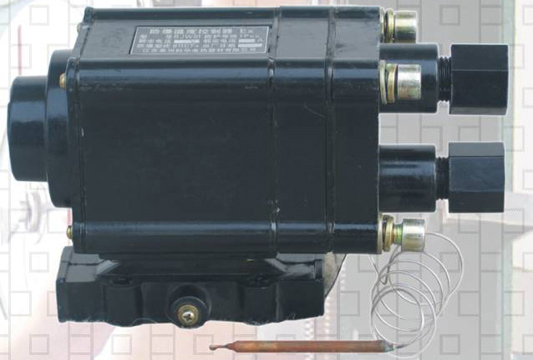

Explosion-proof Temperature Controller is used for controlling heat tracing medium`s temperature. BJW51 Explosion-proof Temperature Controller is used in set with Safety Strengthening Junction Box of
