hydraulic hose

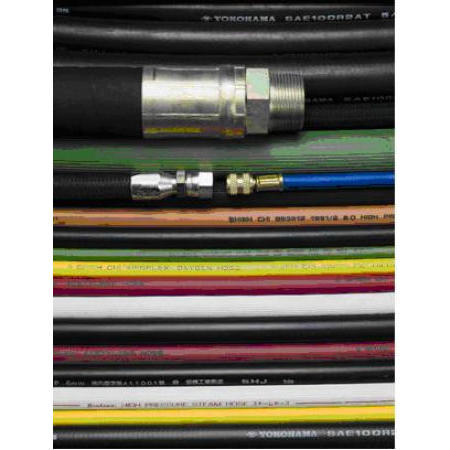

HYDRAULIC HOSE ]SAE 100R1 TYPE AT ^ Brand G WtY YOKOHAMA and SC KINGFLEX Application G hydraulics Bcrude Bfuel and lubricating oils, meet SAE 100R1 type AT. Construction G Tube Goil resistant synthetic NBR rubber Cover Goil abrasion and weather aging resistant synthetic CR rubber Reinforcement Gsingle wire braid Temp. rang G *40 100 (operating temperature in excess of 100 may materially reduce the service life of hose assembly) Max. change in L G *4 H 2 H (under W.P.) Hose I.D. / Size Reinforcement HoseOD Max.W.P. Min.B.P. Min.B.R. Approx.Wt. dash inch ]mm ^ braid O.D.inch inch psi psi inch lbs./ft *4 1/4 ]6.3 ^ 1W 0.437 0.527 2,750 11,000 4.00 0.15 *5 5/16 ]7.9 ^ 1W 0.500 0.594 2,500 10,000 4.50 0.18 *6 3/8 ]9.5 ^ 1W 0.595 0.685 2,250 9,000 5.00 0.23 *8 1/2 ]12.7 ^ 1W 0.716 0.815 2,000 8,000 7.00 0.28 *10 5/8 ]15.9 ^ 1W 0.843 0.933 1,500 6,000 8.00 0.33 *12 3/4 ]19.1 ^ 1W 1.000 1.094 1,250 5,000 9.50 0.42 *16 1 ]25.4 ^ 1W 1.311 1.406 1,000 4,000 12.00 0.64 Remark GSAE 100R1 type A are available upon request.
