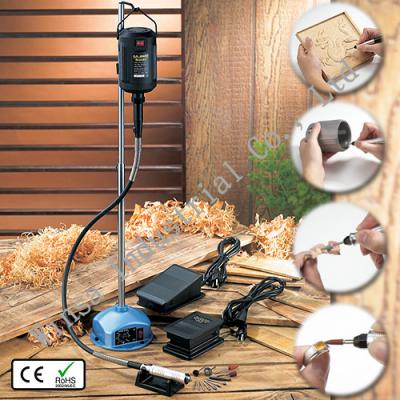

Heavy Duty High Speed Professional Hanging Flex. Shaft Grinder
◆ [ Specification ]： (1) Power： (1.1) AC/DC, 50/60 Hz, 110V-120V, 1Ph. (1.2) AC/DC, 50/60 Hz, 220V-240V, 1Ph. (2) Motor Rotation： (2.1) CS-551： ON/OFF (Counter clockwise) (2.2) CS-551R： Rev. / Off / For. (2 Ways Rotation ) (3) Motor： 1/2HP (340 Watts) (4) Max Speed： 30,000 rpm (5) Variable Speed Range： 0~28,000 rpm (6) Hand Piece： CS503A_Hi-Speed 4mm Drill Chuck Hand piece (7) Drill Chuck Applicability： 0.3 mm ~ 4.0 mm Precision Drill Chuck (8) Precision of Error(Drill Chuck)： below 0.15mm (9) Hand Piece Vibration in operation(Max Speed)： less than 10mm/s (10) Motor Color： Black (Powder Coating) (11) Hand Piece Color： Gold (Anodic Treatment Process) (12) Noise at Working (max speed): (12.1) Motor： 70 dB (12.2)Overall： 75 dB (13) Temperature at Working (max speed, normal environment temp.)： (13.1) Motor: under 40 Celsius Degree (13.2 ) Hose Set: under 40 Celsius Degree (13.3) Hand Piece (grip): under 37 Celsius Degree (14) Special Color Box with extra protection (15) Master Carton : 6 sets / carton (Minimum Order Qty) (16) Master carton dimension (cm) : 65*50*37 (17) N.W / G.W : 24.5kgs / 26.0kgs ◆ [ Certificate ]： CE、UL、KEMA、ROHS、REACH、ISO9001 ◆[ Patents ]： USA、Germany、China、Taiwan ◆ [ Warranty ]： * Warranty of Motor: 2 years * Warranty of Hand piece: 90 days * Warranty of Flexible Shaft set: 300 hours * Warranty of Motor Carbon Brush: 400 hours ◆ [ Certificate ]： CE, UL, KEMA, ROHS, REACH, ISO9001 ◆ [ Patents ]： USA, Germany, China, Taiwan ◆ [ Warranty ]：* Warranty of Motor: 2 years* Warranty of Hand piece: 90 days* Warranty of Flexible Shaft set: 300 hours* Warranty of Motor Carbon Brush: 400 hours ◆ [ Feature ]：* The fastest (Max 30,000 rpm) and most powerful flex shaft carving machine in the world.* Same grade with global well-known brand, DREMEL FORTIFLEX 9100 and FOREDOM SR. In addition, performance and lifespan of CS-551 is largely better than same grade item in the market.* Exclusive patented structure design from WINSA can largely reduce wobble and surface temperature when working operation, improve comfortable using and working safety, and extend lifespan.* Officially SGS Lifespan Test: Over 1000 hrs (No loading, 24 hrs operation).* Flex Shaft Engraving Machine of WINSA is the only one served completed warranty (Motor / Carbon Brush / Flex Shaft Set / Hand piece).* USD 1 million Product Liability Insurance has already been insured.* Representative OEM product: DREMEL FORTIFLEX 9100 Flex Shaft Grinder.* 100% Made In Taiwan. ◆ [ Application ]： Wood carving, Grinding / Engraving, Polishing, Jewelry design / process (Jewelry Tool), Nail cosmetic, DIY uses, Model / Sculpture making, Stone crafting / carving, Pumpkin engraving, denture maintenance, Veterinarian (tooth), Tattoo, Watch band repair, Vehicles parts modification / repair…etc. ◆ [ Standard Attachment in a complete set ]：* CS-502_36"Pro Flex Shaft Set * 1 set* CS-503A_Hi-Speed 4mm Drill Chuck Hand piece * 1 pc* CS-314_Rear Type Variable Speed Control Foot Pedal * 1 set* Hand piece Rest * 1 pc* Wall Hanger * 1 pc* Hexagon Wrench * 1 pc* User's Manual ◆ [ Optional attachment / spare part ]：* CS-507_1/4"(6mm) Collet Hand piece* CS-508_1/8"(3mm) Collet Hand piece* CS-502_48"Pro Flex Shaft Set* Variable speed switch* Carbon Brush* Caps of Carbon Brush
