CNC Punching Machine of Flute Pipe
Use: this equipment is used for punching and flanging of copper pipe and makes the pipe look like a flute. It is mainly applied in the business of air-condition tubing.Features:1) Servo feeding, hydraulic molding2) CNC program, convenient operation3) Good effect of molding, high efficiencySpecifications:1) Max. machining pipe diameter: φ40mm2) Max. machining W. thickness: 1.6mm3) Min machining pipe diameter: φ16mm4) Machining efficiency: 1 time/8sec5) Min. hole distance: 50mm6) Max. length of coil: 1,500mm7) Electric control mode: PLC / touch screen8) Operating mode: auto / manual / jog9) Machining mode: Internal punch forming10) Power supply: three phase 380V/50Hz11) Hydraulic motor power: 3.75kW12) Hydraulic system pressure: 5-8MPa13) Punch travel: 75mm (adjustable)
Product Name: CNC Punching Machine of Flute PipeModel Number: TDM16-1500BPlace of Origin: ChinaUse: this equipment is used for punching and flanging of copper pipe and makes the pipe look like a flute
Use: this equipment is used for metal pipe-end shrinking. It is mainly applied to the machining of air-condition, water heater, refrigerator and automobile`s reservoir, drying bottles as well as muffl
Product Name: CNC Spinning MachineModel Number: TE1M40Place of Origin: ChinaUse: this equipment is used for metal pipe-end shrinking. It is mainly applied to the machining of air-condition, water heat
Use: the equipment is used for opening, straightening, chipless cutting and bending coil copper pipe into set length U shape pipe which is also called hairpin pipe; mainly applied to the auto producti
Product Name: Full Automatic Hairpin BenderModel Number: TBLU7(9.52)-7/1300Place of Origin: ChinaUse: the equipment is used for opening, straightening, chipless cutting and bending coil copper pipe in

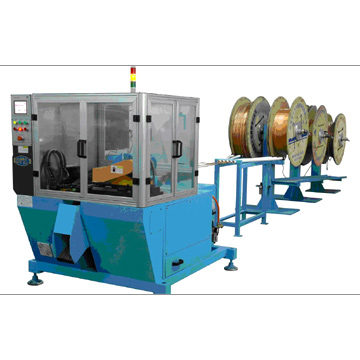

Use: the equipment is used to open, straighten, saw and bend coil copper pipe into return bend, mainly applied to air-condition condenser and evaporator and water heater. It works with full automatic
Product Name: Full Automatic Return BenderModel Number: TBSU7(9.52)-5Place of Origin: ChinaUse: the equipment is used to open, straighten, saw and bend coil copper pipe into return bend, mainly applie
Use: the equipment is used to load welding ring onto return bend automatically, which is applied to air condition condenser& evaporator, water heater. It works with full automatic mode.Feature:1) High
Product Name: Full Automatic Ring LoaderModel Number: TH 7(9.52)-8MPlace of Origin: ChinaUse: the equipment is used to load welding ring onto return bend automatically, which is applied to air conditi
