Mini USB Connector
|
|
Product Name: Mini USB ConnectorPlace of Origin: ChinaU1 series mini USB B type connector: SMT and DIP
|
| |
|

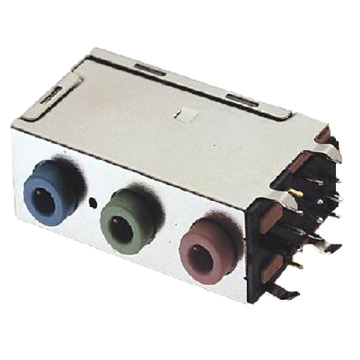

Audio Jack Connector
|
|
Specifications:Mechanical:Plug mating force:3.00kg(6.61lbs) max.Plug unmating force:0.40~3.00kg(0.88~6.61lbs)Contact retention force:0.50kg(1.10lbs) min.Durability:5,000 cyclesElectrical:Current ratin
|
| |
|
Audio Jack Connector
|
|
|
Specifications:Mechanical:Plug mating force: 3.00kg (6.61lbs) max.Plug unmating force: 0.40~3.00kg (0.88~6.61lbs)Contact retention force: 0.50kg (1.10lbs) min.Durability: 5,000 cyclesElectrical:Curren
|
|
|
|
HDMI Connector
|
|
Specifications:HAMI ConnectorMechanical:1) Mating force: 4.5kg (9.91b) max.2) Unmating force: 1.0kg (2.20Lb) to 4.0kg (8.82Lb)3) Durability: 5000cyclesElectrical:1) Contact current rating: 0.5A2) Cont
|
| |
|
HDMI Connector
|
|
|
Product Name: HDMI ConnectorModel Number: HB119Place of Origin: ChinaMechanical:1) Mating force: 4.5kg (9.9lbs.) max.2) Unmating force: 1.0kg (2.20lbs.) to 4.0kg (8.82lbs.)3) Durability: 5000cyclesEle
|
| |
|
IEEE1394 AV Connector
|
|
Specifications:IEEE 1394 AV ConnectorMechanical:1) Mating force: 4.0kg (8.82Lb) max.2) Unmating force: 0.5kg (1.10Lb) to 4.0kg (8.82Lb)3) Durability: 2000cyclesElectrical:1) Contact current rating: 0.
|
|
|
|
IEEE1394 AV Connector
|
|
|
Product Name: IEEE1394 AV ConnectorModel Number: IG504Place of Origin: ChinaSpecifications: IEEE 1394 AV Connector Mechanical: 1) Mating force: 4.0kg (8.82Lb) max. 2) Unmating force: 0.5kg (1.10Lb) to
|
| |
|

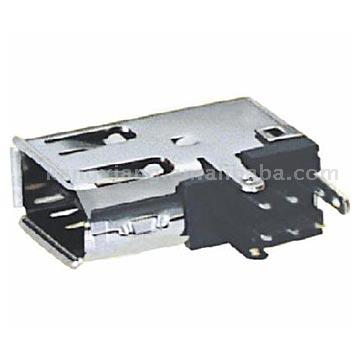

IEEE1394 Connector
|
|
Specifications:IEEE 1394 ConnectorMechanical:1) Mating force: 4.0kg (8.82Lb) max.2) Unmating force: 1.0kg (2.20Lb) to 4.0kg (8.82Lb)3) Durability: 1500cyclesElectrical:1) Contact current rating: 1.5A2
|
| |
|
IEEE1394 Connector
|
|
|
Product Name: IEEE1394 ConnectorModel Number: IE606Place of Origin: ChinaSpecifications: IEEE 1394 Connector Mechanical: 1) Mating force: 4.0kg (8.82Lb) max. 2) Unmating force: 1.0kg (2.20Lb) to 4.0kg
|
|
